Navigate:  StoreFront / Dimple-Staking Tools
The original Dzus® tools were basically "hammer" hand tools that were not designed for production, only basic field replacement of the stud-grommet assembly.  Years ago, Skybolt fabricated a C-Clamp system with tool dies that was an improvement to the hammer system.  Only, the clamp system was inadequate for larger stud-grommets and not exactly precision.  We developed the SK2018 clamp system for the serious FBO Repair Shop emphasizing quality and precision.  The SK2018-C1 Clamp works great in field repairs and is specifically designed to replace Bonanza Dzus® fasteners without removing the cowling.  Interchangeable die sets will fit all common Dzus® sizes.
For shop production and restoration, the same SK2018 dies sets will adapt to any 2-ton Arbor Bench Press.  The following video shows how productive this system can be.


Dimple-Staking Tools

SK2018 SET THUMBNAIL
Complete Zloc (Dzus) Aircraft Tool Set - Includes SK2018C Clamp, all Zloc Die Sets, Press Adapter, Dimple Tool Adpaters. Does not include common .187 dimple dies.
$670.69 - $894.25 Price Details
SK2018C THUMBNAIL
Clamp (less dies and 3/8 drive Ratchet Handle)
$119.04 - $158.72 Price Details
SK2018-A3 THUMBNAIL

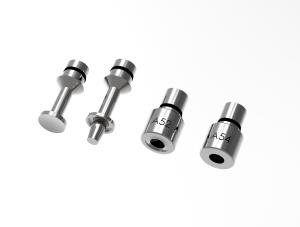

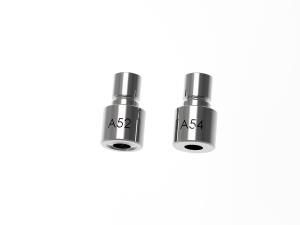

Zloc® and Dzus® #3 Oval Die Set 4-Tools (Less SK2018C Clamp)
$60.99 - $81.32 Price Details

SK2018-A4 THUMBNAIL
Zloc® and Dzus® #4 Oval Die Set 4-Tools (Less SK2018C Clamp)
$60.99 - $81.32 Price Details
SK2018-A5 THUMBNAIL
Zloc® and Dzus® #5 Oval Die Set 4-Tools (Less SK2018C Clamp)
$67.77 - $90.36 Price Details
SK2018-A6 THUMBNAIL
Zloc® and Dzus® #6 Oval Die Set 4-Tools (Less SK2018C Clamp)
$67.77 - $90.36 Price Details

SK2018-A65 THUMBNAIL
Zloc® and Dzus® #6.5 Oval Die Set 4-Tools (Less SK2018C Clamp)
$67.77 - $90.36 Price Details
SK2018-F4 THUMBNAIL
Zloc® and Dzus® #4 Flush Die Set 3-Tools (Less SK2018C Clamp)
$48.38 - $64.51 Price Details
SK2018-F5 THUMBNAIL
Zloc® and Dzus® #5 Flush Die Set 3-Tools (Less SK2018C Clamp)
$48.38 - $64.51 Price Details

SK2018-F6 THUMBNAIL
Zloc® and Dzus® #6 Flush Die Set 3-Tools (Less SK2018C Clamp)
$48.38 - $64.51 Price Details
SK2018-F65 THUMBNAIL
Zloc® and Dzus® #6.5 Flush Die Set 3-Tools (Less SK2018C Clamp)
$48.38 - $64.51 Price Details
SK2018-35 THUMBNAIL
Crimp Zloc® 35/Dzus® PFSC35 Series avionics studs (Less SK2018C Clamp)
$44.25 - $59.00 Price Details

SK2018-26 THUMBNAIL
Cloc®/Camloc® Dimple tool for 2700/2800 Series Studs (Panels up to .072 - Drill .213 hole) (Less SK2018C Clamp)
$44.25 - $59.00 Price Details
SK2018-40 THUMBNAIL
Cloc®/Camloc® Dimple tool for G and H Grommets (Panels up to .086 - Drill ..4687 hole) (Less SK2018C Clamp)
$44.25 - $59.00 Price Details
SK29695 THUMBNAIL
Aloc® and Airloc® #2 Flush 2-Tools (Less SK2018C Clamp)
$44.25 - $59.00 Price Details

SK29667 THUMBNAIL
Aloc® and Airloc® #5 Flush 2-Tools (Less SK2018C Clamp)
$44.25 - $59.00 Price Details
SK29770 THUMBNAIL
Aloc® and Airloc® #5 Round 2-Tools (Less SK2018C Clamp)
$44.25 - $59.00 Price Details
SK2018-2AP THUMBNAIL
2-Ton Arbor Press
$256.50 - $285.00 Price Details

SK2018-A2 THUMBNAIL
Press adapter for all Skybolt die sets
$26.25 - $35.00 Price Details
SK2018-DA1 THUMBNAIL
Dimple Adapter Set for all .187 shank die sets. For Clamp and Press (Less SK2018C Clamp)
$26.25 - $35.00 Price Details
