Self-Locking Insert | Quad-Lead Thread | Seven-Piece Assembly | NSN 5325-00-761-6222

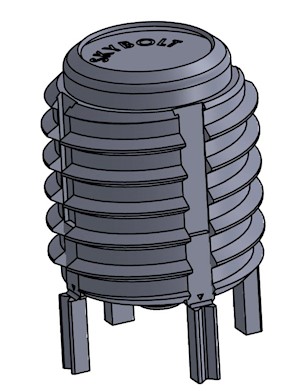

The QL8C62 Kee'd threaded receptacle is a precision seven-piece self-locking insert assembly engineered for fastening systems requiring positive locking capability. The assembly features a 303 stainless steel threaded barrel with 1/2-13 UNC internal mounting threads and .1640-32 quad-lead cam groove for stud engagement. Internal components include dual spring-loaded cam assemblies, nested 17-7 PH stainless steel compression springs, and four 304 stainless steel Kee retention tabs. This design provides self-locking capability through the Kee tab mechanism while maintaining rapid quarter-turn installation and removal. The receptacle is secured with 1/2-13 UNC threads for installation into tapped holes or mounting plates.
📏 Installation Guide: The QL8C62 Kee'd receptacle requires a tapped 1/2-13 UNC hole for installation. The self-locking Kee tabs engage automatically during stud rotation, providing positive locking without additional hardware. Ensure proper thread engagement depth and torque specification for secure mounting. This receptacle is ideal for applications requiring positive locking to prevent inadvertent opening in high-vibration or safety-critical installations.
Manufactured by Skybolt Aerospace Fasteners under AS9100D certification at our Leesburg, Florida facility (CAGE Code: 435Z0). All QL8C62 receptacle assemblies are 100% inspected to drawing specifications and include full material traceability. Materials conform to ASTM A582 for 303 stainless steel, ASTM B853 for 304 stainless steel, and ASTM A313 for 17-7 PH spring steel. Black oxide finish on upper cam meets MIL-DTL-13924 Class 1 requirements. Assembly is qualified to NSN 5325-00-761-6222 for military and defense applications.
Tridair® is a registered trademark of Howmet Aerospace, Inc. or its subsidiaries. Skybolt products are compatible alternatives and are not manufactured by or affiliated with Howmet Aerospace.
