SkyLoc® SN Receptacles
Quad-Lead Ratchet Receptacle System
SkyLoc® SN receptacles provide positive quarter-turn engagement with vibration-resistant locking. Available in three configurations to match your installation requirements: Kee'd threaded inserts for maximum anti-rotation security, non-Kee'd threaded inserts for standard applications, and caged rivet-mount assemblies for structural panel fastening.

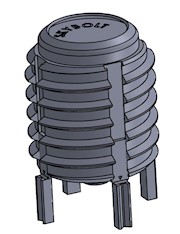

QL8C62 Series
Four precision Kee inserts provide positive anti-rotation locking and field-replaceable serviceability. Ideal for high-vibration environments requiring maximum security.
Thread: 1/2-13 UNC
Material: 303 SS / Passivate AMS 2700
Kees: 304 SS (4 ea., replaceable)
②

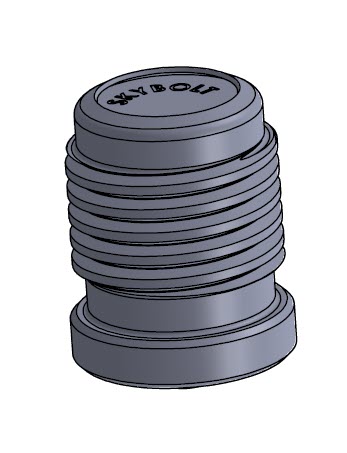

Threaded Insert (Non-Kee'd)
QL8C78 Series
Standard threaded insert with 4-lead quick-engage thread pattern. Provides reliable quarter-turn fastening for general-purpose access panel applications.
Thread: 7/16-20 UNF-2A (4-lead)
Material: 303 SS / Passivate AMS 2700
Stud: A286, 140 KSI / Dry Film MIL-PRF-46010
③

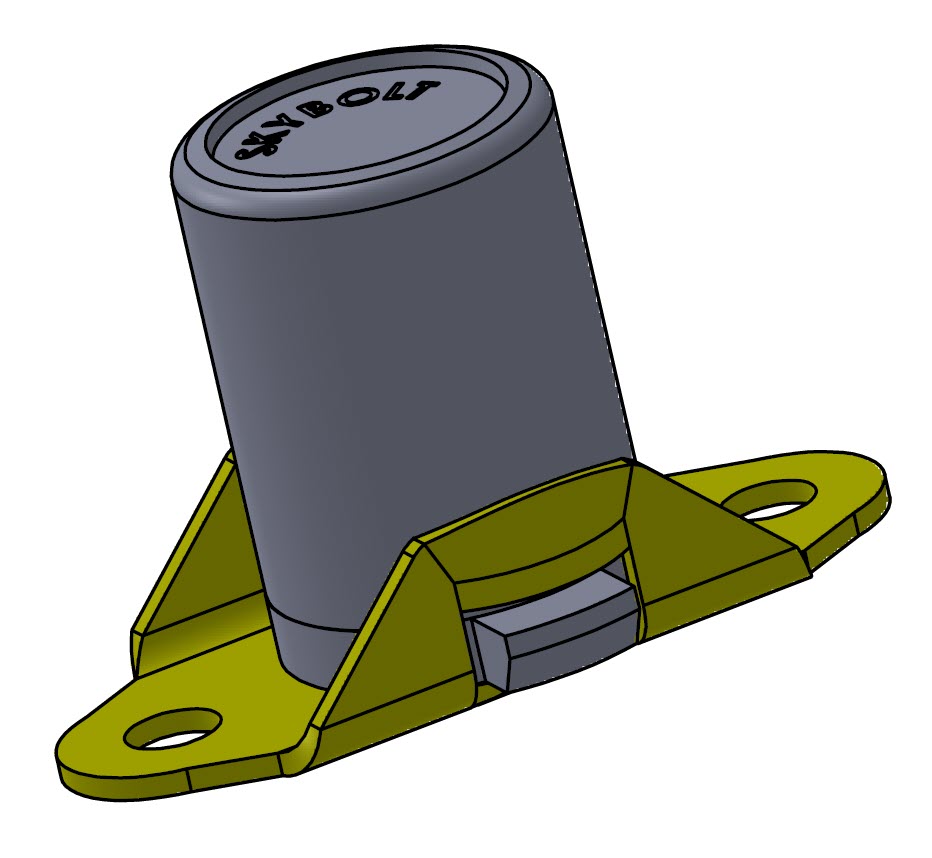

Caged Receptacle Assembly
QL8C10 Series
Complete rivet-mounted assembly with floating cage for panel misalignment tolerance. Multiple grip ranges available for various panel thicknesses.
Tensile: 1,650 lbs min
Shear: 1,800 lbs max
Grip Range: .098" – 1.843" (19 dash numbers)
- Quad-lead ratchet cam mechanism
- Dual nested springs (17-7 PH SS)
- Positive quarter-turn engagement
- Compatible with Flat, Pan, and Knurled stud heads
- Field-serviceable components
- Threaded: Tapped hole installation (QL8C62, QL8C78)
- Rivet-mounted: Caged assembly with floating receptacle (QL8C10)
- Bonded: Adhesive-mount configurations available
Tridair® is a registered trademark of Howmet Aerospace, Inc. Skybolt Fasteners is an independent manufacturer. Product references indicate compatibility only.
SkyLoc® Quad Lead Receptacles
|
QL8C10
Caged Floating Receptacle Assembly
|
|
|
$52.34 - $66.25
Price Details
Alternate Part Number 1:
CA1810
Alternate Part Number 2:
5325-00-925-6399
|
|
QL8C62
4-Kee Threaded Insert
|
|
|
$33.25 - $42.09
Price Details
Alternate Part Number 1:
CA18062
Alternate Part Number 2:
5325-00-761-6222
|
|
QL8C78
Threaded Insert - Non Kee'd
|
|
|
$25.68 - $32.50
Price Details
Alternate Part Number 1:
CA18178
Alternate Part Number 2:
5325-01-035-1979
|
